Description
Commander — 10 560 dh

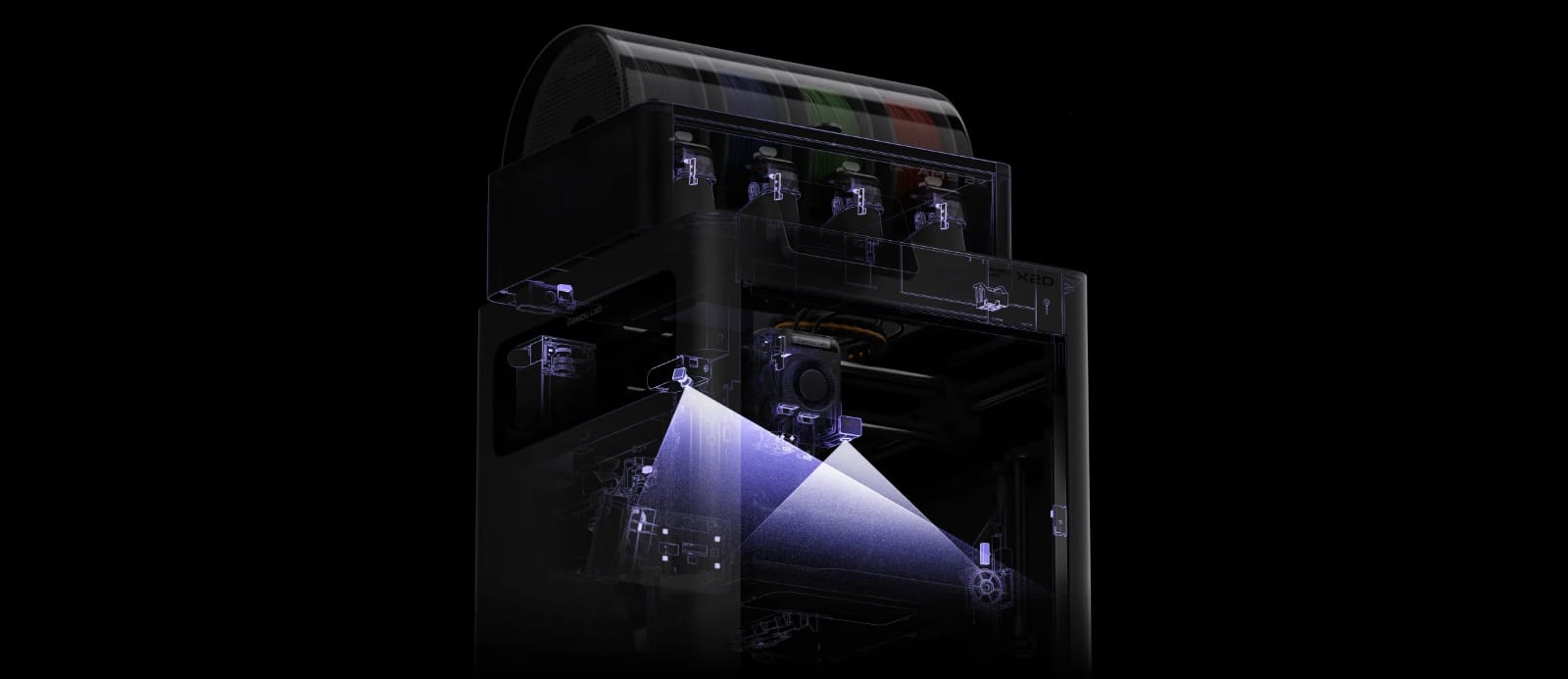

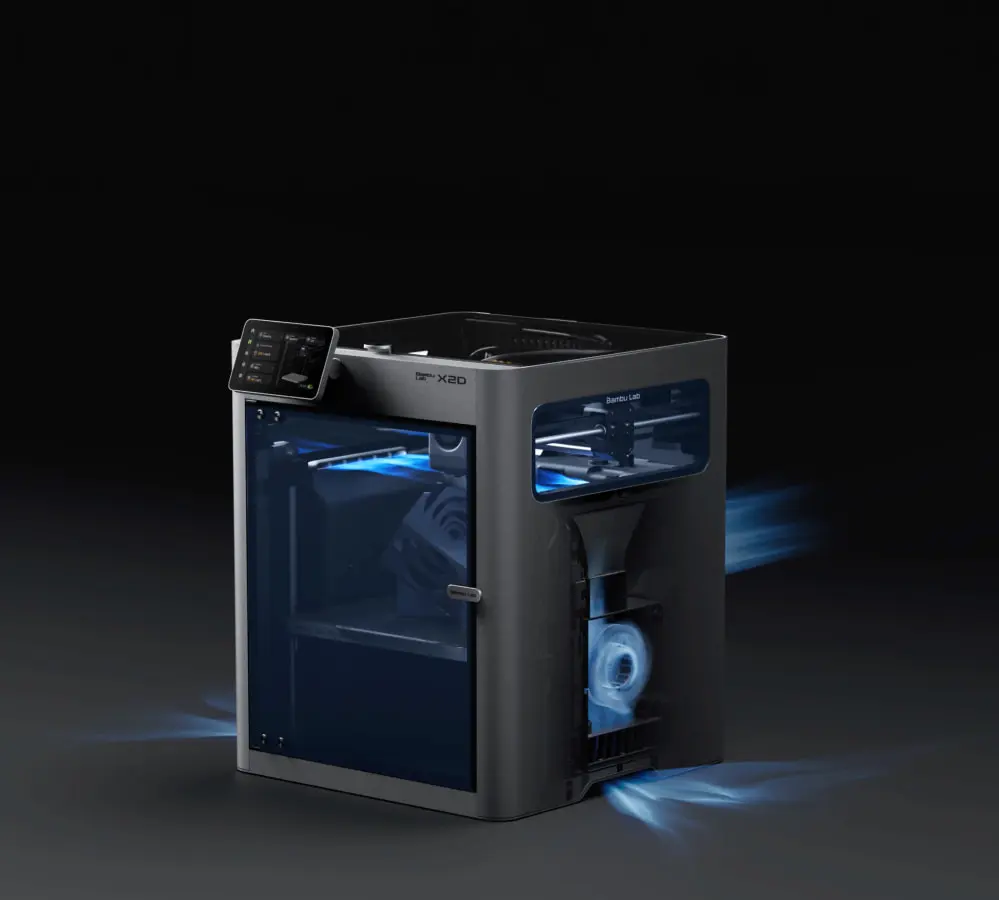

The Bambu Lab X2D 3D printer represents the next evolutionary stage of the Bambu Lab X-series, specifically engineered for precision multi-material 3D printing with dedicated support structures. Featuring a dual-extruder system, an actively heated enclosed build chamber, and intelligent sensor technology, the X2D is designed for users aiming to produce high-quality functional components, complex geometries, and clean support interfaces

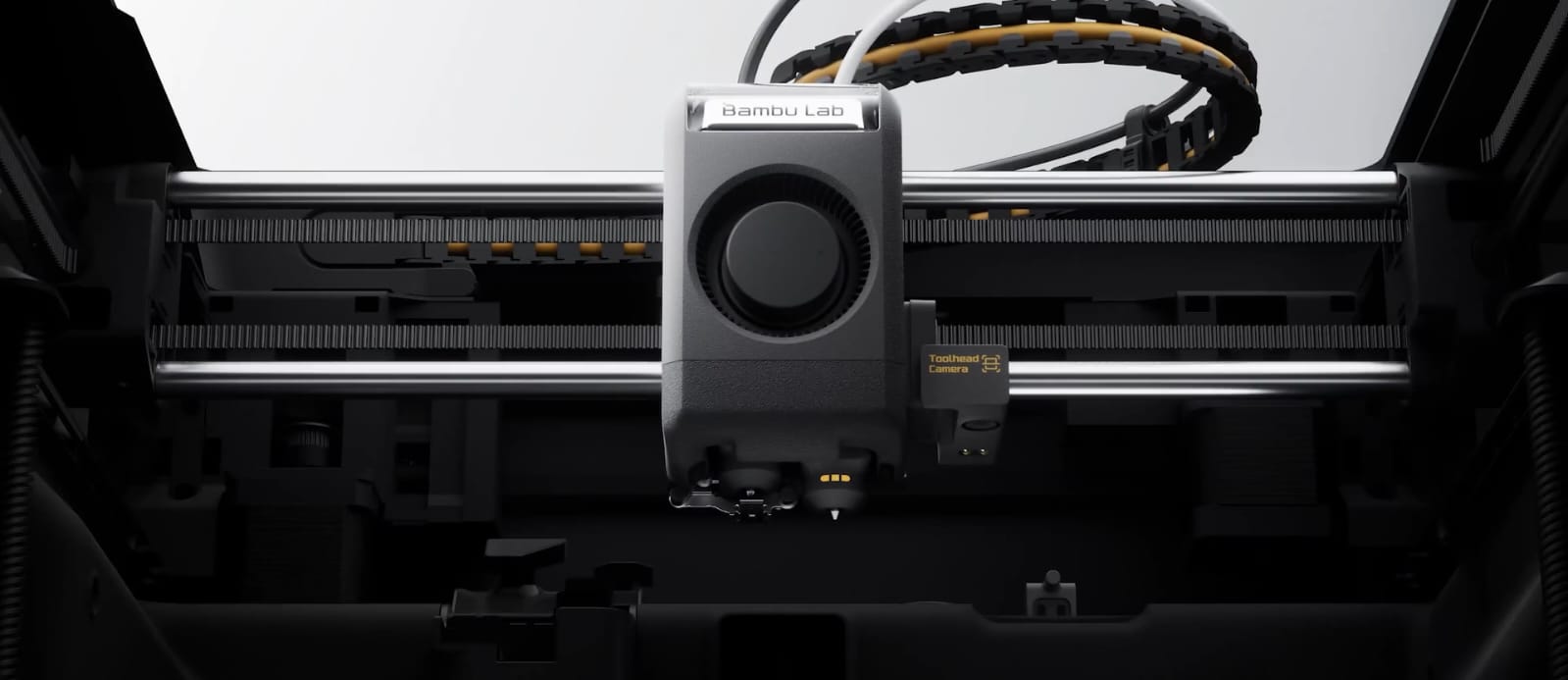

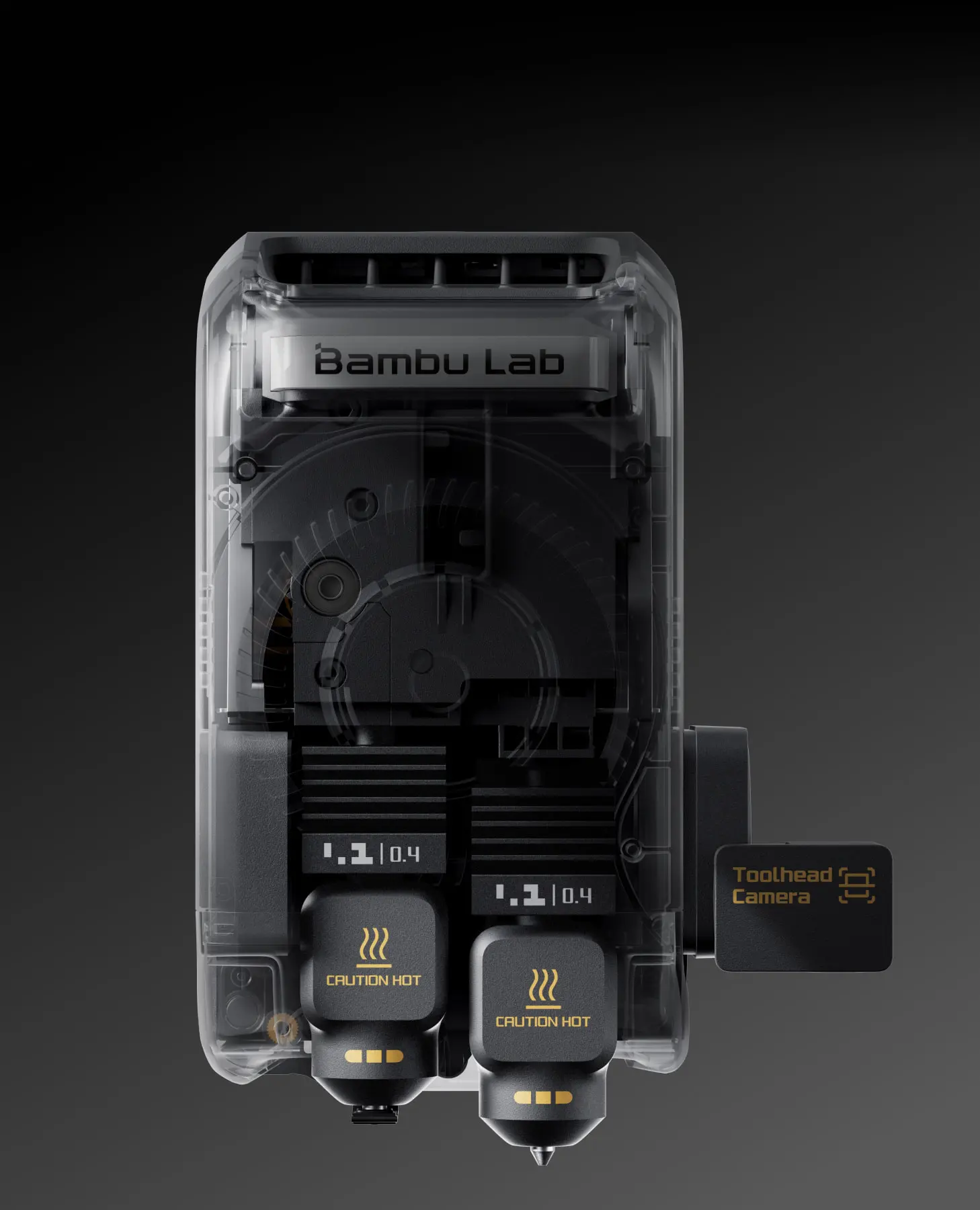

Dual-Extruder System with Mechanical Nozzle Switching
At the heart of the system is a dual-nozzle setup featuring a mechanical switching mechanism that operates without an auxiliary motor in the toolhead. Instead, a gear-and-ratchet mechanism handles the nozzle swap, reducing toolhead mass and minimising vibrations at high speeds. The combination of two extrusion systems is specially designed for maximum efficiency: Direct Drive (left nozzle): Short filament path for precision model printing. Bowden (right nozzle): Optimised for support materials. This architecture enables simultaneous printing of model and support using different materials, resulting in superior surface finishes and cleanly removable supports. Furthermore, the X2D's dual-extrusion system significantly reduces overall filament waste. Tip: The Bambu Lab X2D supports all common support material combinations. For example, PLA can be combined with PETG or PVA supports, while PETG can be used with PLA, or TPU with PLA. For technical materials such as PA6-CF or PET-CF, ABS or ASA can be utilised as support materials
Spécifications Complètes
Caractéristiques Techniques
Spécifications techniques :
| Dimensions de l’imprimante | 392 x 406 x 478 mm |
| Poids net | 16,25 kg |
| Volume d’impression | Main Nozzle Printing : 256 x 256 x 260 mm Auxiliary Nozzle Printing : 235,5 x 256 x 256 mm Dual Nozzle Printing : 235,5 x 256 x 256 mm Volume total : 256 x 256 x 260 mm |
| Hotend | Buse en acier trempé de 0,4 mm avec Filament Cutter intégré |
| Extrudeuse | Direct Drive (Main - gauche) + Bowden (Auxiliary - droite) |
| Diamètre de filament compatible | 1,75 mm |
| Température d’impression max. | 300 °C |
| Vitesse d’impression max. | 1000 mm/s |
| Température du plateau max. | 120 °C |
| Accélération max. | 20 000 mm/s² |
| Débit max. | 40 mm³/s |
| Chauffage de la chambre | actif, jusqu’à 65 °C |
| Purification de l’air | préfiltre G3 + filtre HEPA H12 + charbon actif |
| Plaques compatibles | Bambu Textured PEI Plate, Bambu Cool Plate, Bambu Engineering Plate, Bambu High Temperature Plate, Bambu Smooth PEI |
| Ventilateur Main Control Board | Closed Loop |
| Matériaux pris en charge | PLA (sauf PLA Aero), PETG, ABS, ASA, TPU pour AMS, supports pour PLA, supports pour PLA/PETG, supports pour ABS, supports pour PA/PET, PET, PA, PC, PVA, PLA, PETG, ABS, ASA renforcés fibres de verre ou carbone, PA6, PAHT, PET |
| Caméra de chambre | 1920 x 1080 pixels |
| Écran | écran tactile 5 pouces, 1280 x 720 pixels |
| Contrôle | écran tactile, application mobile, PC |
| Connectivité | WiFi |
| Mémoire | 8 GB EMMC, port USB |
| Tension | version haute tension : 200-240 VAC, 50/60 Hz version basse tension : 100-120 VAC, 50/60 Hz |
| Puissance max. | version haute tension : 1600 W @ 220 V version basse tension : 1100 W @ 110 V |
| Température de fonctionnement | 10-30 °C |
| Systèmes d’exploitation pris en charge | MacOS, Windows, Linux |
| Slicers pris en charge | Bambu Studio et slicers tiers compatibles G-Code (certaines fonctions peuvent être limitées) |
